Mirror framework: The improved UNet replacement

Unfortunately, despite it still being a class leading networking solution, it was no longer directly supported by the company. In UNet’s stead, other multiplayer services came in to fill in its shoes (ex Photon), but they are notoriously more expensive (because they charge per connected “player”).

That said, an individual who goes by the handle vis2k created a MMORPG framework uMMORPG - which under the hood utilized what is now known as the Mirror Networking Framework. What’s wonderful about it is that it’s API isn’t all too different from UNET and it’s free, self-hostable and open source. It’s designed to be performant and suited to any scope — from small hobby projects to full-blown MMOs.

Below is a demo of uMMORPG, with 480 players in a small map. As you can see, Mirror is fast and stable.

uMMORPG 480 CCU Worst Case Stress Test

Setup

Since Mirror is a great open source 3rd party networking plugin, it also provides a very friendly and understandable API.

Step 1 You will need Unity for this :D.

Download Mirror either from Unity Asset Store or from their github repository

Step 2

Create a empty project (2d or 3d). Import the mirror unity package.

Step 3

To make Mirror work with your empty scene, you need to create an empty gameobject called Network Manager. Next, add NetworkManager and NetworkManagerHUD components to this gameobject. If you did everything correctly, upon starting the scene you should see this.

NetworkManagerHUD

Now you have multiplayer game - well, minus the game :D

To write your custom networking code, you need to replace MonoBehaviour with NetworkBehaviour.

APIs and Development Experience

The client-server aspect of Mirror uses commands, RPCs, and SyncVars - all of which are coming from the NetworkBehaviour class. Using these things, Mirror is able to give you a high quality API experience.

Commands

Commands are a way for the player to call functions of networked objects on the server when the player has authority over them (which the server can assign). Let’s give an example for player HP and Mana.

[Command]
public void CmdHeal(){
   this.hp = this.maxHp;
}

[Command]
public void CmdMana(){
    this.mana = this.maxMana;
}

RPCs ( Remote procedural calls )

They are precisely the opposite of the commands. They are used by the server to call functions on the client side.

[ClientRpc]
public void RpcShoot(){
 	PlaySound();
	CreateEffect();
}

Synchronization

Synchronization attributes like SyncVars, SyncList and others are variables which are kept in sync between the server and the client. They allow adding client change hooks to react to value changes.

[SyncVar(hook="OnHealthChange")]
int hp;
public void OnHealthChange(int prevHp, int newHp){
	...
}

Read more about Synchronization

NetworkBehaviour also provides you network events, such as as server and client Start events,

public override void OnStartServer(){
	...
}

public override void OnStartClient(){
	...
}

Read More about NetworkBehaviour Callbacks

and you can declare functions for only the server, or for the client like bellow

[Server]
public void Pretty(){
	...
}

[Client]
public void Neat(){
	...
}

What Mirror offers

Besides all the code and examples, Mirror also offers a large range of components, like lan, lobbies, chat, huds, game managers, discoverability to networked components and much more!

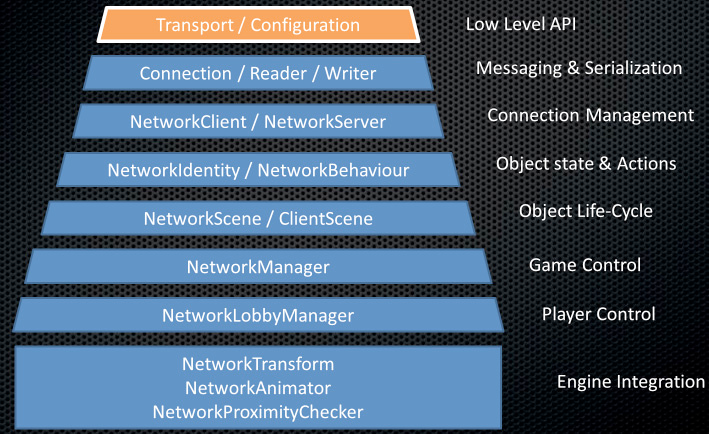

Mirror’s Layered Design

The API in general is very solid with many tools and components, so it makes development fast and easy.

Resources and Documentation

As I mentioned before Mirror is based on UNet - Unity Networking deprecated plugin.

What that means. It means documentation, answers and learning resources are widely available.

As a user who used UNet before for small and simple multiplayer games, I can say Mirror is a very delicious cookie.

You can check Mirror Webiste for documentation, tips, examples, videos, deployment strategies and many more…

Wrap Up

Mirror is a great open source unity networking plugin. It gives you a very high level API, which is understandable and easy to integrate to your new amazing game.

Since it’s based on UNet, the community is big and you can always find examples or guides.
